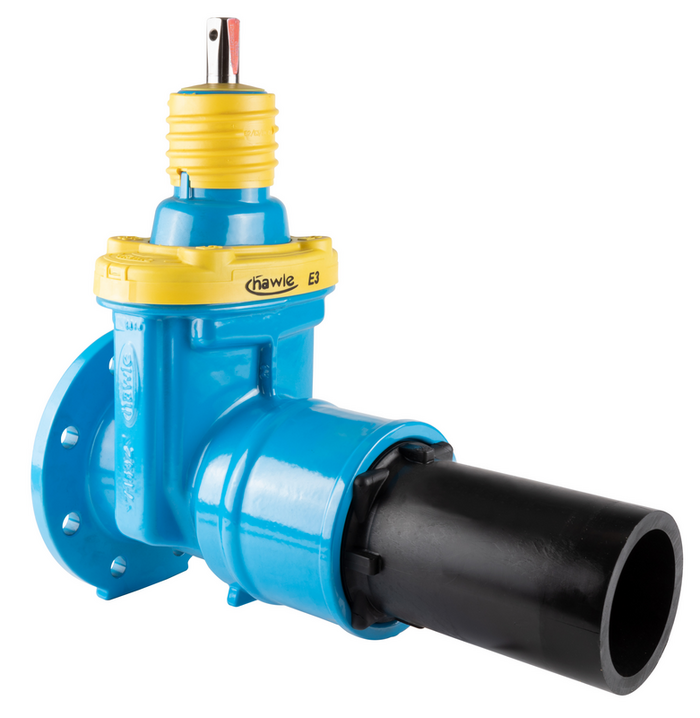

Vană sertar E2 și E3 cu flanşă/racord de capăt țeavă PE
Material: |
Corp: GJS-400, acoperire cu pulbere epoxidică Hawle Tijă: oţel inoxidabil Piuliţă trapezoidală: alamă Sertar: GJS-400, la interior şi la exterior NBR pentru gaz Garnituri: NBR pentru gaz Capăt PE: ţeavă PE, PE 100, inclusiv suporți liniari din oţel inoxidabil |
---|---|
Presiunea maxima de operare: | Vezi tabelul |
Medie | Gaz |
Vană de concesie, cu o flanşă conform standardului EN 1092-2, cu un capăt PE pentru sudare la ţevi PE, prin procedeul de sudură prin rezistenţă sau sudură cu pană fierbinte. Capătul din PE este blocat din fabrică împotriva rotirii.
Utilizare pentru gaz: testat conform DIN 3230-5 PG-1 sau PG-3; inclusiv certificat de aprobare 3.1 în conformitate cu standardul EN 10204 pentru teste de etanşeitate şi rezistenţă, efectuate conform DIN 3230-5.
Comanda nr.
|
DN |
PN max. |
PN |
d |
Tip/Ieşire |
L |
L1 |
B |
H |
Etichetă |
SDR |
Medie | Greutate | A-Text | Cos |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4090500000
|
50 | Gaz SDR 11: 10 bar | 10|16 | 63 mm | Typ E2 | 400 mm | 185 mm | 8,5 mm | 260 mm | PG 1 | 11 | 10,00 kg | |||
4090650000
|
65 | Gaz SDR 11: 10 bar | 10|16 | 75 mm | Typ E2 | 415 mm | 180 mm | 6,8 mm | 328 mm | PG 1 | 11 | 13,00 kg | |||
4090800000
|
80 | Gaz SDR 11: 10 bar | 10|16 | 90 mm | Typ E2 | 425 mm | 180 mm | 8,2 mm | 335 mm | PG 1 | 11 | 17,00 kg | |||
4091000000
|
100 | Gaz SDR 11: 10 bar | 10|16 | 110 mm | Typ E2 | 450 mm | 185 mm | 10 mm | 375 mm | PG 1 | 11 | 23,00 kg | |||
4091010000
|
100 | Gaz SDR 11: 10 bar | 10|16 | 125 mm | Typ E2 | 475 mm | 180 mm | 11,4 mm | 375 mm | PG 1 | 11 | 29,00 kg | |||
4091260000
|
125 | Gaz SDR 11: 10 bar | 10|16 | 140 mm | Typ E2 | 490 mm | 180 mm | 12,7 mm | 450 mm | PG 1 | 11 | 34,50 kg | |||
4091500000
|
150 | Gaz SDR 11: 10 bar | 10|16 | 160 mm | Typ E2 | 500 mm | 180 mm | 14,6 mm | 460 mm | PG 1 | 11 | 42,00 kg | |||
4091800000
|
150 | Gaz SDR 11: 10 bar | 10|16 | 180 mm | Typ E2 | 510 mm | 175 mm | 16,4 mm | 460 mm | PG 1 | 11 | 44,90 kg | |||
4092000000
|
200 | Gaz SDR 11: 10 bar | 10 | 200 mm | Typ E2 | 560 mm | 190 mm | 18,2 mm | 565 mm | PG 1 | 11 | 73,00 kg | |||
4092010000
|
200 | Gaz SDR 11: 10 bar | 10 | 225 mm | Typ E2 | 560 mm | 190 mm | 20,5 mm | 565 mm | PG 1 | 11 | 74,00 kg |
